\(QS37_{8}^{(1)}\)
Description
Phase Portrait
Topological Invariants
| TCSP | Fin Sep | Inf Sep |
|---|---|---|
| \(37\) | \(433\) | \(31\) |
Example
The quadratic differential system
\[\begin{cases} \dot{x} = (1-e) \, x^{2}+2 \, h \, x \, y+(n-1-2 \, h) \, y^{2} \\ \dot{y} = y+c \, (1-e) \, x^{2}+(2+2 \, h-n) \, (1-e) \, x \, y-2 \, c \, x \, y+(c-2-2 \, h+2 \, n) \, y^{2} \end{cases}\]
with parameters: \(h = \frac{-7999}{10000}, \quad c = \frac{6397}{10000}, \quad n = \frac{1}{25}, \quad e = -0.000001\)

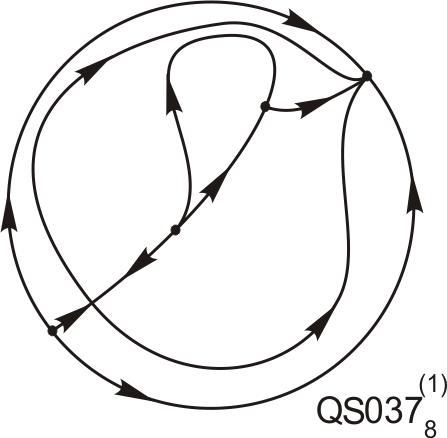

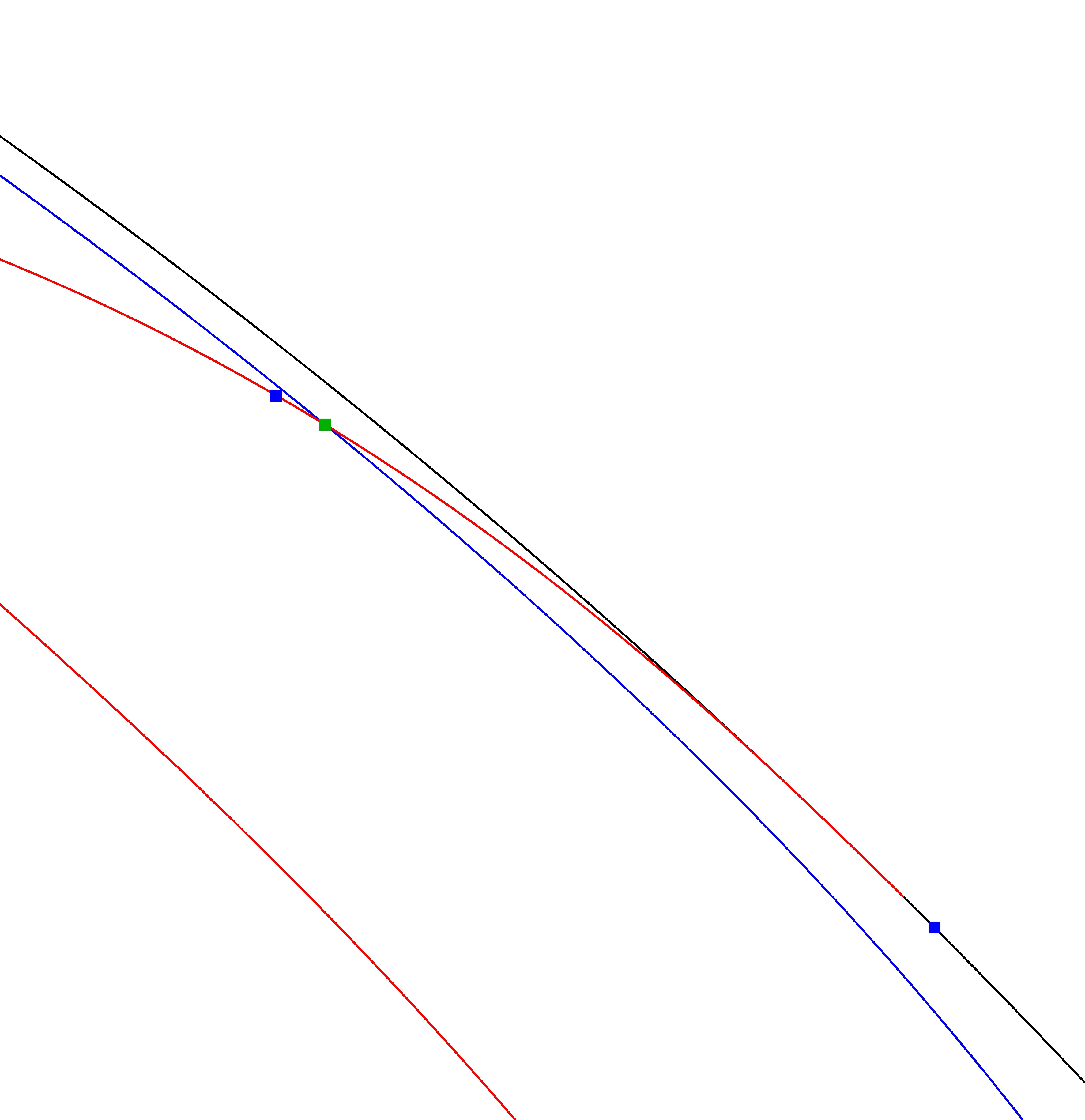

has the following phase portrait done with P4. If you want, you may download the P4 file here. Since the image is not clear enough, we have added a ZOOM of it.
The phase portrait appears in the following papers
- With name \(A 2S05\) in {J. C. Artés, C. Bujac, D. Schlomiuk and N. Vulpe}, Phase portraits of real quadratic differential systems possessing an invariant ellipse, {Preprint} (2026).
- With name \(V37\) in {J. C. Artés and C. Trullàs}, Quadratic Differential Systems with a Weak Focus of First-Order and a Finite Saddle-Node, {International Journal of Bifurcation and Chaos, Vol. 36, No. 6 (2026) 2630013 (99 pages)}
- With name \(U^1_{A9}\) in {J. C. Artés, J. Llibre and A. C. Rezende}, Structurally unstable quadratic vector fields of codimension one, Birkhäuser/Springer, Cham, 2018, vi+267 pp.
- With name \(5S26\) in {J. C. Artés, A. C. Rezende and R. D. S. Oliveira}, The geometry of quadratic polynomial differential systems with a finite and an infinite saddle-node (C), emph{Internat. J. Bifur. Chaos Appl. Sci. Engrg.}, textbf{25}, no. 3 (2015), 1530009, 111 pp.
Bifurcations in codimension 0
- Bifurcation interface between the codimension 0 portrait \(QS23_{1}^{(0)}\) and \(QS8_{5}^{(0)}\).
Comments
This phase portrait appears in J. C. Artés and C. Trullàs ({International Journal of Bifurcation and Chaos, Vol. 36, No. 6 (2026) 2630013 (99 pages)}) featuring a weak focus of first order. Consequently, a configuration structurally equivalent to \(QS37_{8}^{(1)}\) could potentially exhibit an additional limit cycle bifurcating from the focus.
